Name: nolitto3d Clixbeetle-GX™ STL Files - Tactile-Feedback Mod for the Logitech Driving Force Shifter
Brand: nolitto3d
Price: 10.00 USD
Availability: InStock

Clixbeetle-GX_Base.jpg → Clixbeetle-GX STL base assembly – 3D-printable tactile mod for Logitech G25 G27 G29 G920 G923 Driving Force Shifter

nolitto3d Clixbeetle-GX™ STL Files - Tactile-Feedback Mod for the Logitech Driving Force Shifter

$10.00

nolitto3d Clixbeetle-GX™ STL Files - Tactile-Feedback Mod for the Logitech Driving Force Shifter

$10.00

VIEW ALL BUNDLED DISCOUNTS

Assembly, Finishing & Lubrication Instructions

Post-Processing: Inspect the inner sliding tracks of Clixbeetle-GX_Base.stl and the outer edges of Clixbeetle-GX_Sliders.stl. Remove any minor stringing or first-layer elephant's foot so the sliders travel smoothly without binding.
O-Rings and Sliders Assembly: Wrap the Rubber O-Rings around the designated sliders tension channels (as per photos). Ensure the Sliders flat surfaces are facing up and seat the PETG Split Sliders into the PLA+ Base
Lubrication (Important): Apply a light coat of Plastic- & Rubber-Safe Silicone Grease to the sliding surfaces of the PETG Split Sliders and the inner shaft contact path. (Note: Do NOT use petroleum- or mineral-oil-based greases, as petroleum degrades EPDM rubber over time).

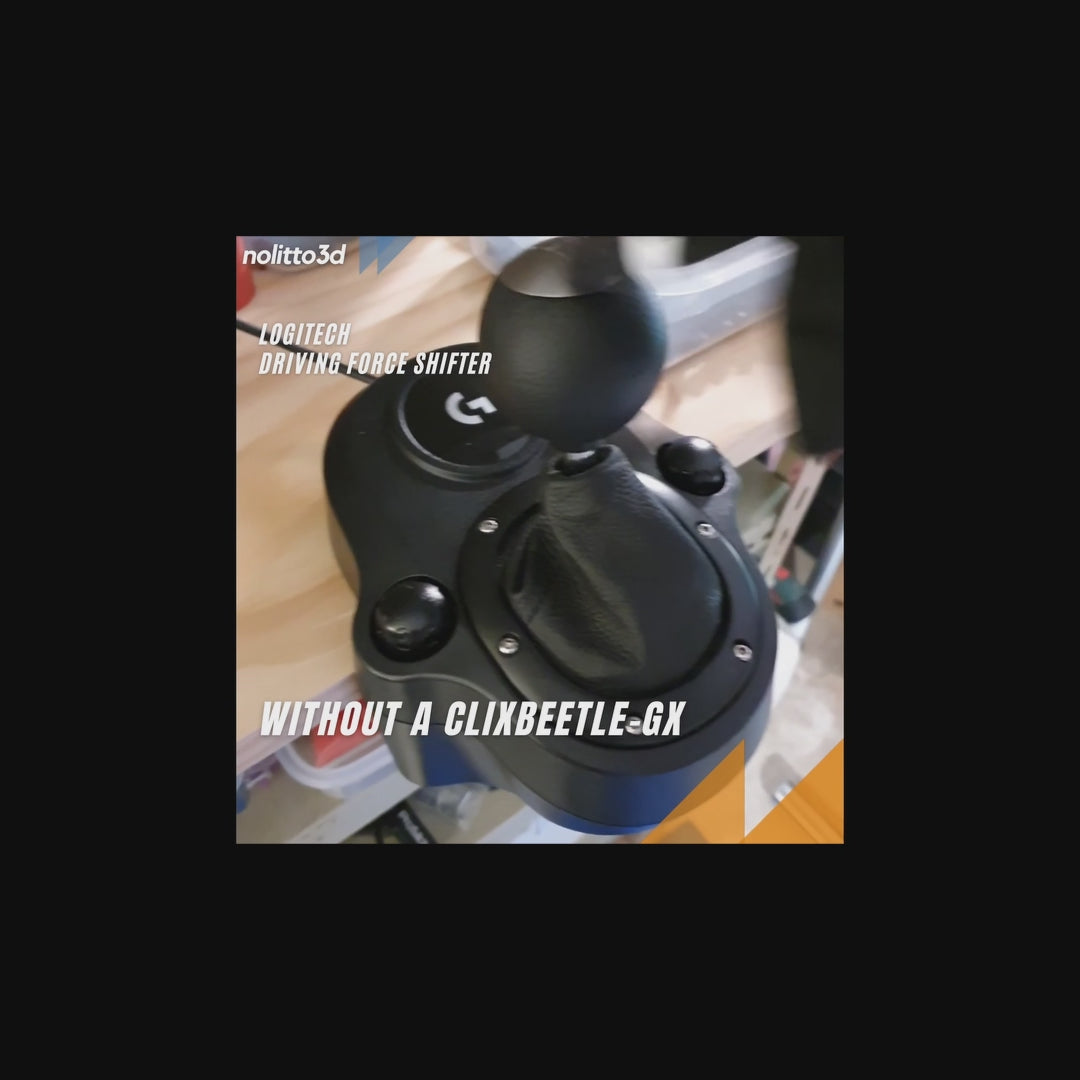

Under-Boot Installation: As per Clixbeetle-GX product photos - Remove the knob, remove the Logitech top retention ring/boot screws, position the assembled Clixbeetle-GX™ over the shifter shaft, place the original Logitech leather boot back over the assembly, and secure everything using the original factory screws.

nolitto3d Clixbeetle-GX™ STL Files Download

STL Digital Files so you can print this awesome mod for the Logitech Driving Force Shifter!

Digital download (Zip archive) containing the base and sliders as per photos.

Your files will be available to download once payment is confirmed.

Please Note: These are digital files – No physical items will be shipped.

Digital download orders don’t accept returns, refunds, exchanges or cancellations. 60 Days money back does not apply to digital downloads.

Printing recommendation:

Base - Print in PLA+ with supports, at least 3 walls.

Sliders - Print in PETG, no supports, at least 3 walls.

Non-Printed Hardware Required (Not Included):

To assemble your printed mod, you will need Heavy-Duty Rubber O-Rings - Recommended specifications (refer to the I.D and t cross-section diagram in the photo gallery):
* Material: EPDM Rubber
* Hardness: 70 Durometer (Shore 70A)
* Inside Diameter (I.D): 10.77 mm (0.424 in.)
* Section / Thickness (t): 2.62 mm (0.103 in.)
* Outside Diameter (OD): 16.01 mm (0.630 in.)
* Standard Industry Size Code: AS568-111 / BS111 (Nominal Fractional Size: 7/16" ID × 5/8" OD × 3/32" Width)

Fasteners & Boot:
Reuses 100% of your original Logitech shifter leather boot and original factory screws.

License: Personal and/or Commercial Use

You are authorized to print the nolitto3d Clixbeetle-GX for personal and/or commercial use (you are allowed to sell the 3D printed/physical parts).
You can show/display photos of the printed parts for personal and/or commercial use.
You can show/display images and/or photos of the 3D models for personal and/or commercial use.
You are not authorized to sell, share, give away the 3D digital files.

The work is protected by Copyright and/or other applicable law. Any use of the work other than as authorized under this license or Copyright Law is prohibited.

Precision Engineered

Tactile Immersion

Easy Installation

Premium PLA+

Direct fit for the Logitech G25/G27/G29/G920/G923 Driving Force Shifter.

Non-Printed Hardware Required (Not Included):

To assemble your printed mod, you will need Heavy-Duty Rubber O-Rings - Recommended specifications (refer to the I.D and t cross-section diagram in the photo gallery):
* Material: EPDM Rubber
* Hardness: 70 Durometer (Shore 70A)
* Inside Diameter (I.D): 10.77 mm (0.424 in.)
* Section / Thickness (t): 2.62 mm (0.103 in.)
* Outside Diameter (OD): 16.01 mm (0.630 in.)
* Standard Industry Size Code: AS568-111 / BS111 (Nominal Fractional Size: 7/16" ID × 5/8" OD × 3/32" Width)

Included 3D Print Files (.STL)

Digital download (Zip archive) containing the base and sliders as per photos.

Clixbeetle-GX_Base.stl — Structural chassis base (Print in PLA+)
Clixbeetle-GX_Sliders.stl — Internal tactile split sliders (Print in PETG)

Your files will be available to download once payment is confirmed.
